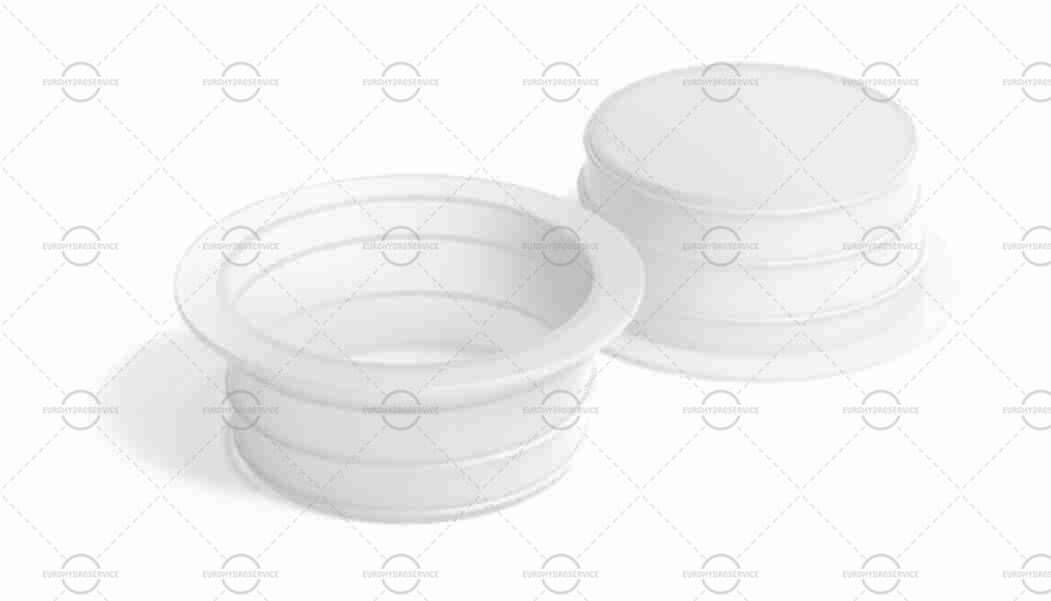

Заглушка защитная коническая для защиты резьбы, отверстий, шлангов, труб и оборудования во время покраски, сборки или транспортировки.
Цвет: Нейтральный
Материал: ПЭНД
Температура (°C): мин. –30°, макс. +50°
|
Наименование |

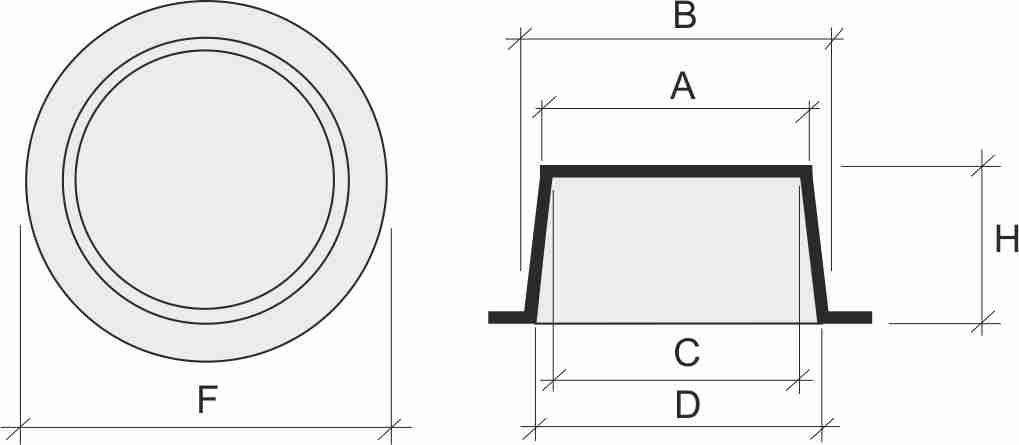

Размеры (мм) |
Подходит к Rʺ (используйте таблицу в качестве руководства) |
Упаковка |
||||||||
|
Артикул |
Модель |
A |
B |
C |
D |
F |
H |
Внешний |
Внутренний |
Кол-во в картон. коробке |
Кол-во в Mini Pak |
|
2100500 |
234O |
2.6 |
3.6 |
1.0 |
2.5 |
6.0 |
6.0 |
|
|
|
1000 |
|
2147000 |
235C |
4.4 |
6.1 |
2.8 |
4.5 |
9.5 |
9.5 |
|
|
|
1000 |
|
2101000 |
236X |
6.0 |
7.2 |
4.2 |
5.5 |
11.9 |
9.5 |
|
|
|
1000 |
|
2102000 |
237Y |
7.6 |
9.3 |
6.0 |
7.7 |
13.5 |
9.5 |
|
|
|
1000 |
|
2103000 |
229Z |
8.4 |
10.0 |
6.8 |
8.5 |
14.3 |
9.5 |
|
1/8" |
|
1000 |
|
2104000 |
238D |
9.2 |
10.8 |
7.6 |
9.3 |
15.1 |
9.5 |
|
|
|
1000 |
|
2105000 |
239E |
9.9 |
11.6 |
8.3 |
10.0 |
15.9 |
9.5 |
|
|
|
1000 |
|
2106000 |
181 |
11.0 |
12.3 |
9.1 |
11.3 |
15.1 |
9.5 |
1/8" |
1/4" |
|
1000 |
|
2107000 |
240 |
11.4 |
13.0 |
9.8 |
11.5 |
17.5 |
9.5 |
|
|
|
1000 |
|
2108000 |
189 |
12.0 |
13.9 |
10.3 |
12.4 |
18.3 |
11.1 |
|
|
|
1000 |
|
2109000 |
241 |
13.5 |
15.4 |
11.9 |
13.8 |
19.1 |
12.7 |
1/4" |
|
|
1000 |
|
Наименование |
Размеры (мм) |
Подходит к Rʺ (используйте таблицу в качестве руководства) |
Упаковка |
||||||||
|
Артикул |
Модель |
A |
B |
C |
D |
F |
H |
Внешний |
Внутренний |
Кол-во в картон. коробке |
Кол-во в Mini Pak |
|
2110000 |
188 |
14.0 |
16.1 |
12.4 |
14.4 |
19.8 |
13.5 |
1/4" |
3/8" |
|
1000 |
|
2111000 |
242 |
14.5 |
16.7 |
13.0 |
15.1 |
21.4 |
12.7 |
|
|
|
1000 |
|
2112000 |
243 |
16.3 |
18.5 |
14.7 |
16.9 |
22.2 |
12.7 |
|
|
|
1000 |
|
2113000 |
191 |
17.1 |
19.0 |
15.6 |
17.6 |
23.0 |
12.7 |
3/8" |
|
|
1000 |
|
2114000 |
203 |
17.2 |
20.0 |
15.9 |
18.5 |
23.8 |
13.5 |
|
|
|
1000 |
|
2149000 |
245 |
18.5 |
20.9 |
16.8 |
19.4 |
25.4 |
14.3 |
|
1/2" |
|
500 |
|
2115000 |
246 |
19.1 |
21.5 |
17.4 |
20.0 |
26.2 |
14.3 |
|
|
|
500 |
|
2116000 |
204 |
20.6 |
23.0 |
19.0 |
21.5 |
27.8 |
15.9 |
|
|
|
500 |
|
2117000 |
247 |
20.7 |
23.7 |
19.2 |
22.0 |
28.6 |
15.9 |
1/2" |
|
|
500 |
|
2118000 |
192-1 |
22.0 |
24.7 |
20.3 |
23.2 |
29.4 |
19.0 |
|
|
|
500 |
|
2119000 |
248 |
22.7 |
26.4 |
21.1 |
24.8 |
29.4 |
19.0 |
|
3/4" |
|
500 |
|
2120000 |
249 |
24.5 |
27.7 |
23.0 |
26.1 |
32.5 |
19.0 |
|
|
5000 |
500 |
|
2121000 |
153 |
25.4 |
29.1 |
23.8 |
27.5 |
34.1 |
19.0 |
3/4" |
|
4000 |
250 |
|
2122000 |
193 |
27.7 |
31.0 |
26.2 |
29.2 |
35.7 |
19.0 |
|
|
3000 |
250 |
|
2148000 |
250 |
29.6 |
32.0 |
28.0 |
30.6 |
36.5 |
19.0 |
|
1" |
3000 |
250 |
|
2123000 |
205 |
31.3 |
34.5 |
29.7 |
32.8 |
38.9 |
20.6 |
|
|
2500 |
250 |
|
2152000 |
252-2 |
32.8 |
36.7 |
31.2 |
34.5 |
41.0 |
25.4 |
|
|
1500 |
250 |
|
2124000 |
278 |
33.4 |
37.2 |
31.8 |
35.6 |
45.0 |
19.0 |
1" |
|
2000 |
250 |
|
2125000 |
254 |
36.8 |
40.7 |
35.2 |
39.0 |
44.5 |
19.0 |
|
|
2000 |
250 |
|
2126000 |
194 |
38.6 |
40.6 |
37.0 |
39.0 |
45.2 |
18.2 |
|
1 1/4" |
2000 |
250 |
|
2127000 |
195 |
39.6 |
42.7 |
38.0 |
41.7 |
50.0 |
19.0 |
|
|
1400 |
200 |
|
2128000 |
255 |
41.5 |
44.4 |
39.8 |
42.8 |
49.2 |
19.0 |
1 1/4" |
|
2000 |
250 |
|
2129000 |
196 |
44.5 |
47.8 |
42.6 |
46.2 |
51.6 |
19.0 |
|
1 1/2" |
1500 |
|
|
2130000 |
206 |
45.5 |
49.5 |
43.7 |
48.0 |
59.0 |
25.4 |
1 1/2" |
|
1200 |
|
|
2158000 |
256 |
46.9 |
50.8 |
45.4 |
49.1 |
54.0 |
25.4 |
|
|
1200 |
|
|
2131000 |
259 |
48.5 |
52.5 |
46.5 |
50.5 |
60.0 |
19.5 |
|
1 3/4" |
1200 |
|
|
2132000 |
258 |
50.3 |
54.1 |
48.7 |
52.5 |
60.0 |
25.4 |
|
|
1000 |
|
|
2153000 |
260 |
52.0 |
56.0 |
50.5 |
55.0 |
62.0 |
25.4 |
1 3/4" |
|
900 |
|
|
2133000 |
261 |
54.5 |
58.5 |
52.0 |
56.7 |
67.7 |
25.0 |
|
2" |
800 |
|
|
2150000 |
262 |
54.0 |
61.0 |
52.5 |
59.5 |
65.0 |
25.4 |
|
|
900 |
|
|
2134000 |
207 |
58.5 |
62.5 |
57.0 |
61.0 |
67.5 |
23.8 |
2" |
|
700 |
|
|
2155000 |
263 |
61.0 |
66.0 |
59.5 |
64.5 |
72.2 |
28.5 |
|
|
700 |
|
|
2135000 |
267 |
65.0 |
68.3 |
63.4 |
66.7 |
73.0 |
19.0 |
|
|
800 |
|
|
2157000 |
199 |
66.5 |
71.0 |
65.0 |
69.0 |
75.0 |
12.7 |
|
|
1000 |
|
|
2136000 |
208 |
69.0 |
76.6 |
67.5 |
74.5 |
85.0 |
25.4 |
|
2 1/2" |
500 |
|
|
2137000 |
268 |
72.5 |
76.0 |
71.0 |
74.0 |
85.0 |
19.0 |
|
|
500 |
|
|
2151000 |
269 |
75.5 |
81.5 |
74.0 |
80.5 |
87.0 |
25.4 |
2 1/2" |
|
400 |
|
|
2154000 |
270 |
78.5 |
84.0 |
76.8 |
82.5 |
93.0 |
25.4 |
|
|
400 |
|
|
2156000 |
200 |
84.5 |
87.5 |
82.5 |
86.0 |
92.9 |
12.7 |
|
3" |
800 |
|
|
2138000 |
209 |
82.0 |
90.5 |
80.5 |
89.0 |
100.0 |
24.5 |
3" |
|
400 |
|
|
2139000 |
96 |
93.0 |
96.0 |
91.5 |
94.5 |
102.0 |
25.0 |
|
|
300 |
|
|
2140000 |
104 |
99.0 |
106.0 |
96.0 |
101.0 |
118.0 |
25.0 |
|
|
250 |
|
|
2189000 |
110 |
106.5 |
111.0 |
105.0 |
109.0 |
117.0 |
20.0 |
|
|
300 |
|
|
2141000 |
114 |
110.0 |
116.0 |
108.5 |
112.5 |
127.0 |
25.0 |
4" |
|
200 |
|
|
2160000 |
120 |
117.0 |
121.0 |
115.0 |
119.0 |
133.0 |
25.0 |
|
|
200 |
|
|
2190000 |
125 |
124.6 |
126.7 |
123.0 |
125.0 |
134.0 |
20.0 |
|
|
200 |
|
|
2191000 |
130 |
128.6 |
132.1 |
126.5 |
129.6 |
139.5 |
20.0 |
|
|
200 |
|
|
2143000 |
135 |
130.0 |
135.0 |
127.0 |
132.0 |
150.0 |
35.0 |
|
|
125 |
|
|
2144000 |
140 |
135.0 |
142.0 |
133.5 |
138.5 |
155.0 |
35.0 |
|
|
100 |
|
|
2145000 |
145 |
140.0 |
146.0 |
138.0 |
143.0 |
160.0 |
35.0 |
|
|
100 |
|
|
2146000 |
155 |
148.0 |
155.0 |
145.0 |
152.0 |
170.0 |
40.0 |
|
|
100 |
|
|
2161000 |
187 |
183.0 |
187.5 |
180.0 |
184.5 |
217.0 |
26.4 |
|
|
100 |
|
|
2162000 |
202 |
197.0 |
202.5 |
194.0 |
199.5 |
224.0 |
26.5 |
|
|
100 |
|
|
2163000 |
289 |
281.5 |
289.0 |
277.9 |
285.4 |
307.0 |
31.0 |
|
|
40 |
|
