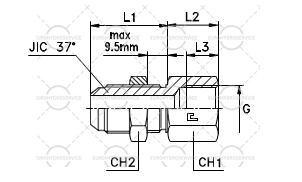

Тип
6218
Резьба
BSP
|
Серия JIC |
20…. [bar] |
21…. [bar] |
Код |
Ø трубы M |
Ø трубы W |
G |
L1 |
L2 |
L3 |
CH1 |
CH2 |
JIC 37° |
|
УНИВЕРСАЛЬНАЯ |
350 |
350 |
6218-07-02 |
6 |
1/4 |
1/8 |
31,5 |
16 |
10 |
17 |
17 |
7/16-20 |
|
6218-08-02 |
8 |
5/16 |
1/8 |
31,5 |
16 |
10 |
19 |
19 |
1/2-20 |
|||
|
6218-09-04 |
10 |
3/8 |
1/4 |
33,5 |
21 |
14 |
22 |
22 |
9/16-18 |
|||
|
6218-12-06 |
12 |
1/2 |
3/8 |
37,6 |
22,4 |
14 |
24 |
24 |
3/4-16 |
|||
|
6218-14-08 |
14-15-16 |
5/8 |
1/2 |
41,1 |
26,4 |
17 |
30 |
30 |
7/8-14 |
|||
|
315 |
315 |
6218-17-12 |
18-20 |
3/4 |
3/4 |
45,4 |
29,1 |
19 |
36 |
36 |
11/16-12 |
|
|
290 |
290 |
6218-21-16 |
25 |
1 |
1 |
45,4 |
31,1 |
21,5 |
41 |
41 |
15/16-12 |
|
|
240 |
240 |
6218-26-20 |
30-32 |
11/4 |
11/4 |
46,7 |
36,3 |
23,5 |
50 |
50 |
15/8-12 |
|
|
6218-30-24 |
38 |
11/2 |
11/2 |
47 |
38 |
25,5 |
60 |
55 |
17/8-12 |
|||
|
350 |
350 |
6218-07-04 |
6 |
1/4 |
1/4 |
31,5 |
21 |
14 |
19 |
17 |
7/16-20 |
|
|
6218-08-04 |
8 |
5/16 |
1/4 |
31,5 |
21 |
14 |
19 |
19 |
1/2-20 |
|||
|
6218-09-02 |
10 |
3/8 |
1/8 |
33,5 |
16 |
10 |
17 |
22 |
9/16-18 |
|||
|
6218-09-06 |
10 |
3/8 |
3/8 |
33,5 |
22,5 |
14 |
24 |
22 |
9/16-18 |
|||
|
6218-12-04 |
12 |
1/2 |
1/4 |
37,6 |
21,4 |
14 |
22 |
24 |
3/4-16 |
|||
|
6218-12-08 |
12 |
1/2 |
1/2 |
37,6 |
26,4 |
17 |
30 |
24 |
3/4-16 |
|||
|
6218-17-08 |
18-20 |
3/4 |
1/2 |
45,4 |
26,6 |
17 |
30 |
36 |
11/16-12 |
